HyperCubeC&I II Max
Optimize Energy, Maximize Value
Industry-leading 800Vac low-voltage PV + storage solution — designed to maximize efficiency, simplify deployment, and accelerate ROI for next-generation C&I energy applications.
-
Revolutionary 800Vac Transformer-Free Architecture
-
Ultra-High Efficiency with Full Liquid Cooling + SiC
-
AI-Powered Safety & Lifecycle Intelligence
-
Faster Deployment, Faster Returns
-
Flexible & Grid-Ready for Future Energy Systems
Industry-leading 800Vac low-voltage PV + storage design
No additional transformer required
Lower CAPEX and higher system efficiency
Simplified integration for complex applications
Up to 99.3% PCS efficiency
Up to 92% round-trip efficiency
Superior thermal management for longer lifespan
Ultra-low noise operation down to 55 dB
Thermal runaway early warning (1–7 days in advance)
1800+ real-time monitoring points
Cell-level balancing for optimized battery consistency
Up to 50% higher O&M efficiency than the previous generation
Only 5 on-site cable connections required
Installation completed within 2 hours
APP-based monitoring and remote O&M
Up to 40% reduction in auxiliary power consumption than the previous generation
Supports grid-connected, off-grid, hybrid, and microgrid modes
Available in DC & AC versions
Flexible voltage options: 400V / 690V / 800V
Ideal for AI data centers and future high-load applications
Technical Specifications
-

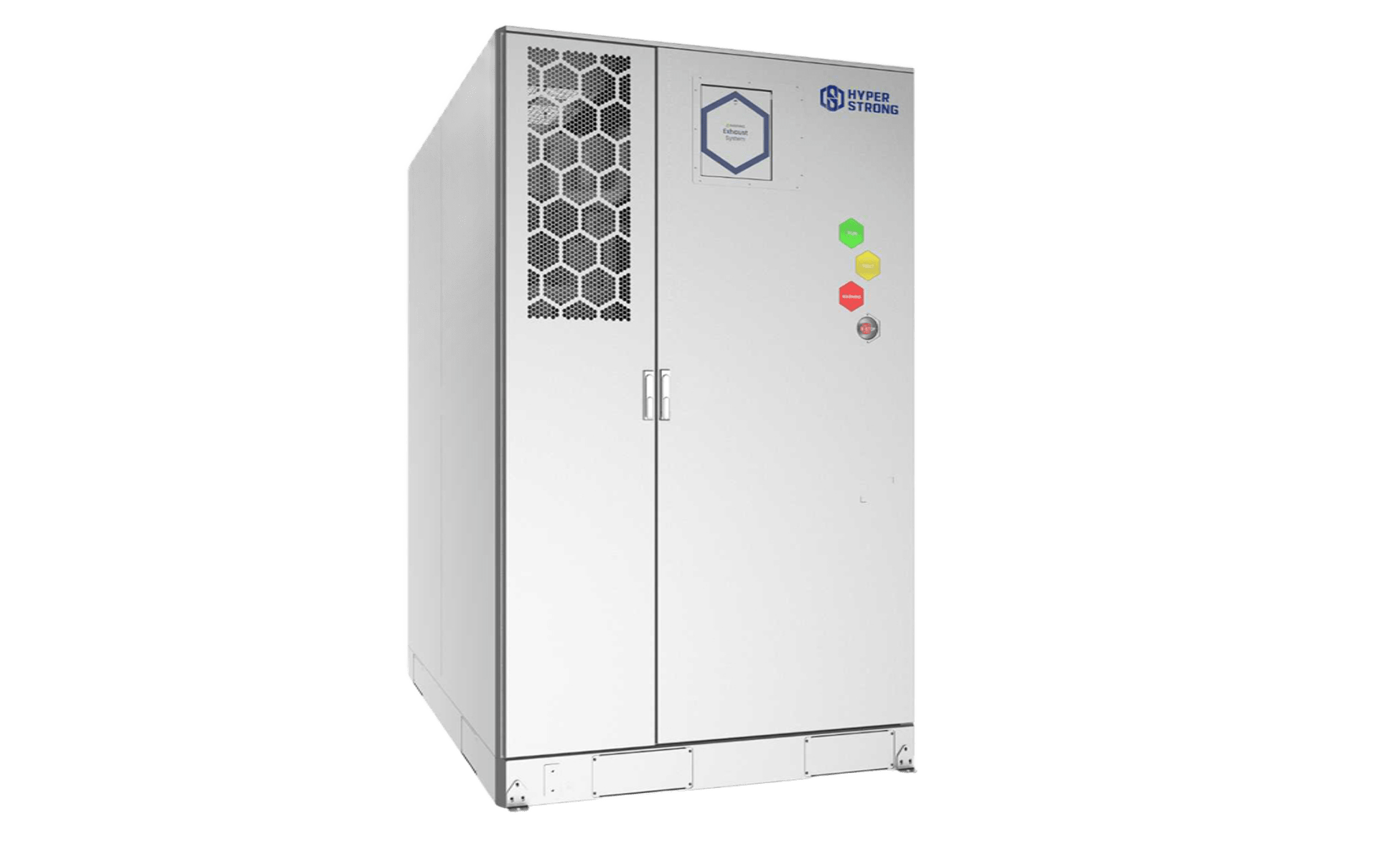

HyperCubeC&I II Max
|
Product |
Liquid-cooling ESS |
|
Model |
HSL3C7B31-0836-EU |
|
Battery Type |
LFP-314Ah |
|
Configuration |
416S2P |
|
Total Battery Energy |
835.9kWh |
|
Rated Voltage |
400 Vac / 690Vac / 800Vac (-15%~+10%) |
|
Max RTE |
92% |
|
Dimensions (W*D*H) |
1450*2400*2400±5mm |
|
Operating Temperature |
-25°C to +55°C (derating above 45°C) |
|
Fire Suppression system |
Aerosol + Water Spray System/Optional pack-level Perfluorohexanone |
|
Cooling Method |
Smart Liquid Cooling |
|
Noise Level |
≤65 dB (≤55 dB with noise reduction accessories) |
|
Certifications |
IEC 60730, IEC 61000-6-2, IEC 61000-6-4, IEC 62619, IEC 63056, IEC 62477, IEC 62040, UN 38.3, EN 50549-1&2&10, VDE-AR-N 4105&4110, IEC 62933, UL 9540A, NFPA 69 |
