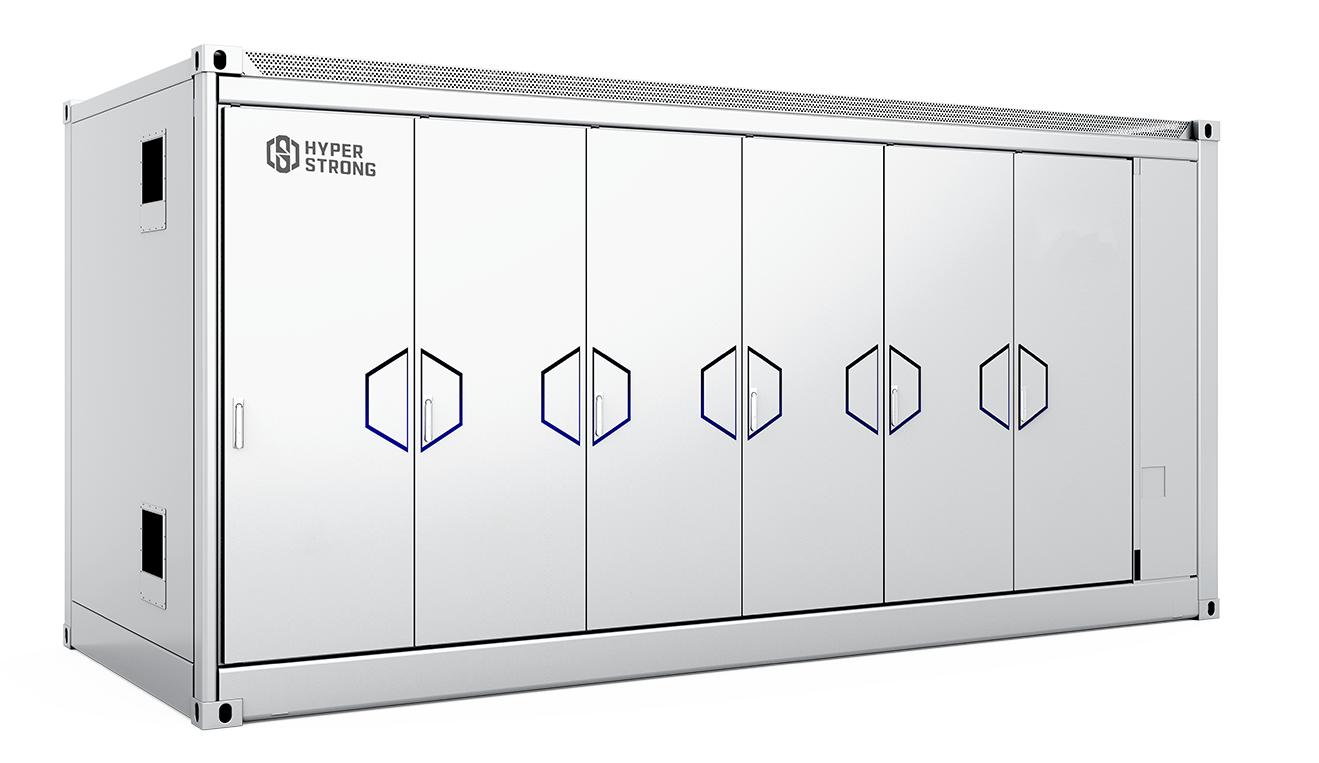

HyperBlock III

Liquid-cooling ESS for Utility-scale

HyperBlock III, a battery energy storage system integrated with a liquid-cooling system, provides high efficiency and flexibility for the utility-scale. With up to 5MWh battery capacity, HyperBlock III can offer a 34.5% increase in energy density, serving as an ideal choice for utility-scale battery storage.

  • Low LCOS
  • Safe and Reliable
  • Highly Integrated
  • Efficient and Flexible
  • Save footprint and on-site workload

  • Maximize Battery Longevity: smart liquid cooling system maintains the optimal performance of cells and PCS throughout their lifecycle

  • Reduce Auxiliary Power Consumption: thermal control strategies adapt to various conditions, enhancing energy efficiency and cutting costs

  • Early Safety Alerts: Digital modelling technologies enable AI analysis throughout the cell's lifecycle, providing early warnings for cell safety

  • Intelligent Safety Monitoring: A multi-dimensional sensing system tracks cell, electrical, and structural safety, ensuring active safety management

  • Comprehensive Protection: Multi-level electrical protection and fire suppression design enhance overall safety

  • Up to 5MWh Capacity: 34.5% increase in energy density

  • Efficient Design: Integrated battery pack, PDU, and string PCS reducing the commissioning time by over 4h

  • Flexible Installation: Single-side opening design optimizes space and saves O&M workload

  • Improved RTE: Precise battery state algorithm optimized battery rack operation for power scheduling, increasing the power station's round-trip efficiency (RTE) by 2%

  • Enhanced Discharge Capacity: Intelligent regulation of each battery rack's charge and discharge boosts the system's overall discharge capacity


Technical Specifications

  • 01.png
  • 01.png
  • 5MWh-AC

  • 5MWh-DC

Product

Liquid-cooling ESS

Model

HSL3C721-05015

Battery Cell

LFP-314Ah

Configuration

12P416S

Rated Energy (kWh)

5015.96

Rated Voltage (V d.c.)

1331.2

Rated Power (kW)

2500 @25℃

Rated AC Power (kVA)

2500 @25℃

Rated Frequency

50Hz/60Hz

Dimensions (W*D*H)

6058*2438*2896mm

Operating Temperature

-30~55°C (> 45℃ derating)

Cooling Method

Smart Liquid Cooling

Certifications

UN38.3, IEC61000, IEC62933-5-2, IEC62619, IEC60730, IEC63056, IEC62477, UL9540A, UL9540, UL1973, NFPA855

Product

Liquid-cooling ESS

Model

HSL3C700-05015

Battery Cell

LFP-314Ah

Rated Energy (kWh)

5015.96

Rated Voltage (V d.c.)

1331.2

Voltage Range (V d.c.)

1206.4~1476.8

Rated Power (kW)

2500 @25℃

Dimensions (W*D*H)

6058*2438*2896mm

Operating Temperature

-30~55°C (> 45℃ derating)

Cooling Method

Smart Liquid Cooling

Certifications

UN38.3, IEC61000, IEC62933-5-2, IEC62619, IEC60730, IEC63056, IEC62477, UL9540A, UL9540, UL1973, NFPA855
