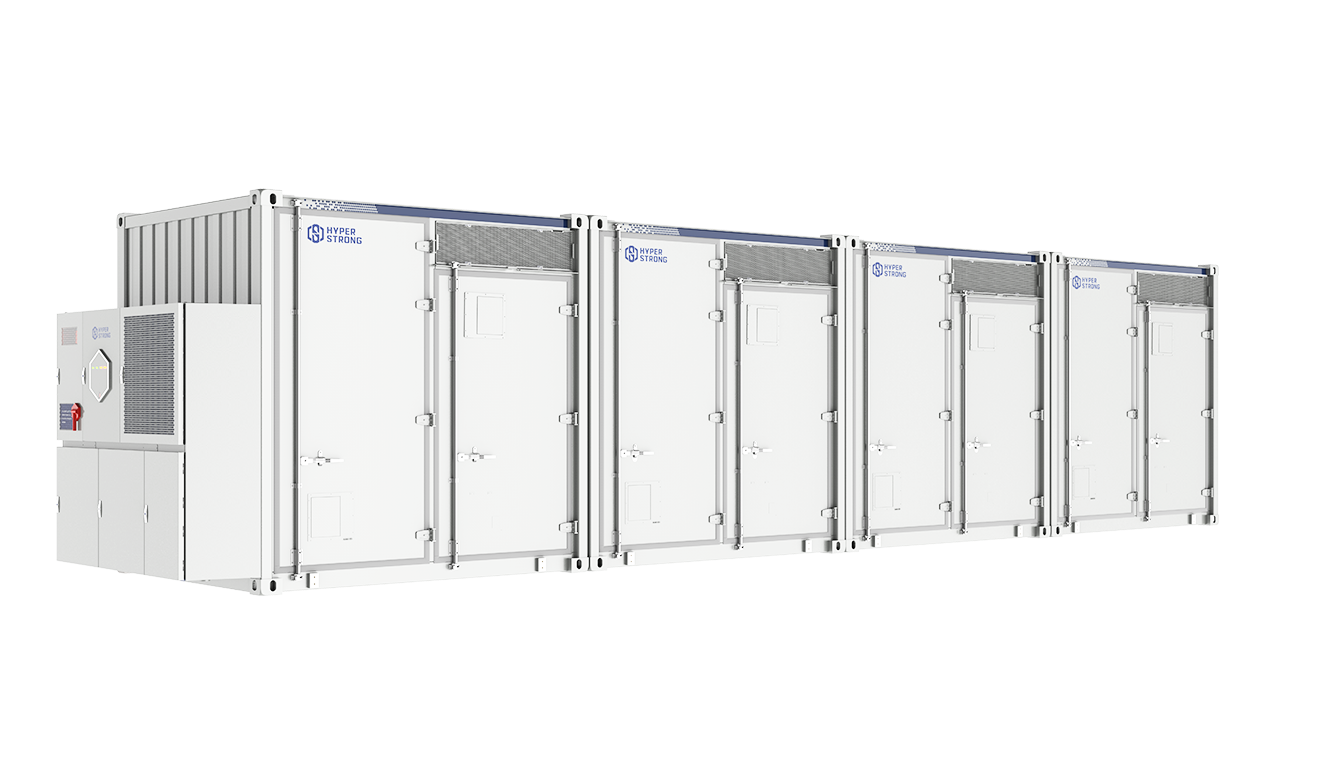

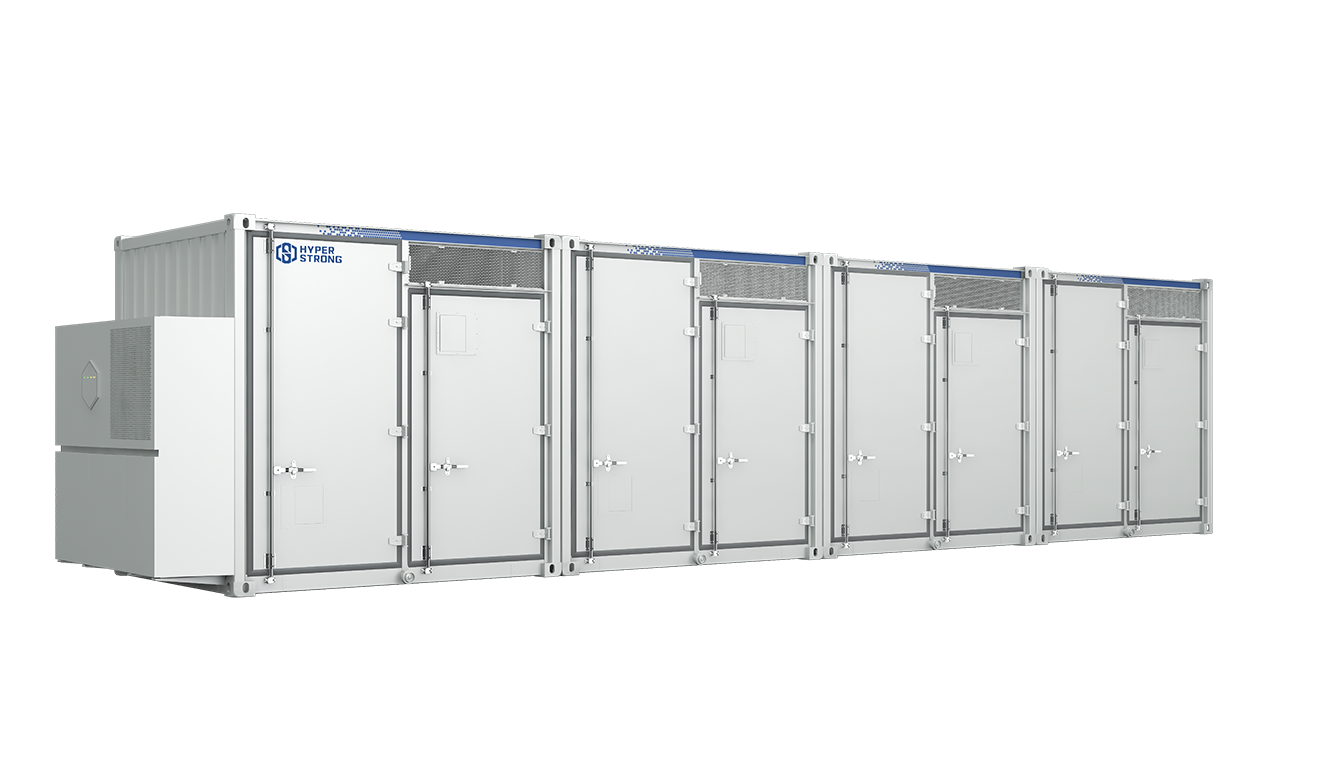

HyperBlock M
Newest ESS for Utility-scale Application
HyperBlock M is derived from the brand-new MagicBlock platform. We bring customers mega-efficient, ultimate safety, ultra-flexible, low LCOS, and extremely simple ESS solutions through a new utility-scale storage product platform MagicBlock and AI.
-
Ultra-high Flexibility
-
Mega-efficient
-
Long Lifecycle
-
Grid-friendly
-
Ultimate Safety
-
Minimal Maintenance
1, 2, 4, 8 blocks can be configured arbitrarily
Supports “side by side, back to back” parallel arrangement
24 tons module, supports maritime, land, and railway transportation
Flexible supplement, low replacement cost
RTE ≥ 93%@4h, 690Vac
New self-developed SIC PCS with max 98.9% efficiency
Dual-channel liquid-cooled TMS for batteries and PCS, decreasing 20% energy consumption
>10000cls@SOH70%, 0.5P
Full-time balancing technology, improving lifecycle discharge capacity by more than 2%
Intelligent TMS and dynamic temperature control algorithm realize the reliable guarantee of battery life
Support Grid-forming, Grid-following, Black Start and islanding protection, etc
Comprehensive safety protection design, to achieve full coverage of all scenarios
AI-based technology enables thermal runaway early warning 7 days in advance
The maximum thermal runaway loss reduced from 20HC to 10HC
Provide AI-based intelligent platform, conduct more than 10 types of O&M work online and offline
The O&M work assistant HyperGenie is constructed to realize intelligent guidance functions, reducing the difficulty and workload on site
Technical Specifications
-
HyperBlock M-AC-12.8MWh
-
HyperBlock M-DC-12.5MWh
-
HyperBlock M-AC-6.4MWh
-
HyperBlock M-DC-6.25MWh
|
Product |
Liquid-cooling ESS |
|
Model |
HSL3G71-12800 |
|
Battery Cell |
LFP-601Ah |
|
Configuration |
16P416S |
|
Rated Energy |
12.8 MWh |
|
Rated Voltage |
1331.2 Vdc |
|
Rated AC Power |
400kW * 8 |
|
Rated AC Voltage |
690 Vac |
|
Rated Frequency |
50Hz/60Hz |
|
Dimensions (W*D*H) |
12192*2438*2896mm |
|
Operating Temperature |
-30°C~55°C |
|
Cooling Method |
Smart Liquid Cooling |
|
Fire Suppression system |
Combustible gas detection, temperature sensor, smoke detection, cabin level aerosols, deflagration venting panels, water fire protection |
|
Certifications |
EN61000, IEC62619, IEC60730, IEC62477, IEC62933, UL9540A, UL1973, UL9540, NFPA855/68/69, UN38.3, EN50549, G99, VDE4110, VDE4120, UL1741, IEEE1547 |
|
Product |
Liquid-cooling ESS |
|
Model |
HSL3901-12502 |
|
Battery Cell |
LFP-587 Ah |
|
Configuration |
16P416S |
|
Rated Energy |
12.502 MWh |
|
Rated Voltage |
1331.2 Vdc |
|
Operating Voltage Range |
1123.2~1497.6 Vdc |
|
Dimensions (W*D*H) |
12192*2438*2896 |
|
Operating Temperature |
-30°C~55°C |
|
Cooling Method |
Smart Liquid Cooling |
|
Fire Suppression system |
Combustible gas detection, temperature sensor, smoke detection, cabin level aerosols, ventilation system, deflagration venting panels, water fire protection |
|
Certifications |
EN61000, IEC62619, IEC60730, IEC62477, IEC62933, UL9540A, UL1973, UL9540, NFPA855/68/69, UN38.3 |
|
Product |
Liquid-cooling ESS |
|
Model |
HSL3G71-06400 |
|
Battery Cell |
LFP-601Ah |
|
Configuration |
8P416S |
|
Rated Energy |
6.4 MWh |
|
Rated Voltage |
1331.2 Vdc |
|
Rated AC Power |
400kW * 4 |
|
Rated AC Voltage |
690 Vac |
|
Rated Frequency |
50Hz/60Hz |
|
Dimensions (W*D*H) |
6058*2438*2896mm |
|
Operating Temperature |
-30°C~55°C |
|
Cooling Method |
Smart Liquid Cooling |
|
Fire Suppression system |
Combustible gas detection, temperature sensor, smoke detection, cabin level aerosols, deflagration venting panels, water fire protection |
|
Certifications |
EN61000, IEC62619, IEC60730, IEC62477, IEC62933, UL9540A, UL1973, UL9540, NFPA855/68/69, UN38.3, EN50549, G99, VDE4110, VDE4120, UL1741, IEEE1547 |
|
Product |
Liquid-cooling ESS |
|
Model |
HSL3901-06251 |
|
Battery Cell |
LFP-587 Ah |
|
Configuration |
8P416S |
|
Rated Energy |
6.251 MWh |
|
Rated Voltage |
1331.2 Vdc |
|
Operating Voltage Range |
1123.2~1497.6 Vdc |
|
Dimensions (W*D*H) |
6058*2438*2896mm |
|
Operating Temperature |
-30°C~55°C |
|
Cooling Method |
Smart Liquid Cooling |
|
Fire Suppression system |
Combustible gas detection, temperature sensor, smoke detection, cabin level aerosols, ventilation system, deflagration venting panels, water fire protection |
|
Certifications |
EN61000, IEC62619, IEC60730, IEC62477, IEC62933, UL9540A, UL1973, UL9540, NFPA855/68/69, UN38.3 |
